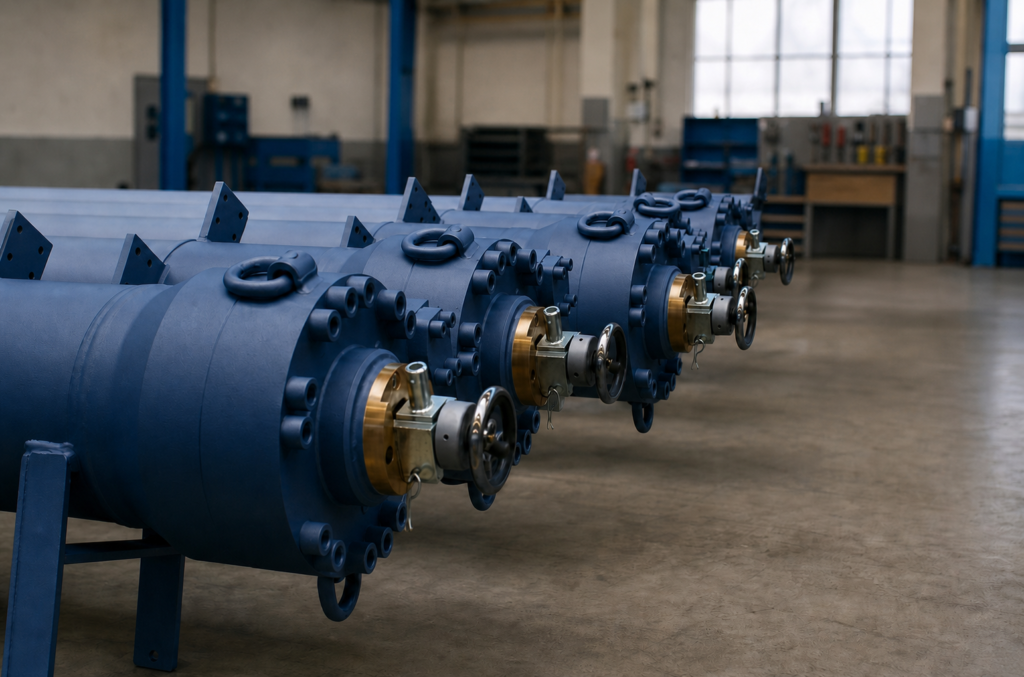

Custom Hydraulic Cylinders for Heavy Industry
Large Hydraulic Cylinders for Presses, Steel Mills, Mining, Aerospace, Hydropower, Shipbuilding, and Industrial Equipment
Macrodyne has been designing and building some of the world’s largest hydraulic press cylinders for decades. But our cylinder expertise is not limited to Macrodyne presses.
We design, manufacture, repair, replace, and modernize large custom hydraulic cylinders for heavy industrial equipment across many industries, including steel, aerospace, mining, defense, shipbuilding, hydropower, rail, energy, construction, rubber, plastics, composites, and more.
We support hydraulic cylinder requirements for all press makes and models, as well as non-press industrial equipment where large-bore cylinders, high force, reliable sealing, and long-term serviceability are critical.
Whether you are replacing an obsolete cylinder, repairing a recurring failure, modernizing older equipment, or designing a new high-force system, Macrodyne can help engineer the right cylinder for the application.
You Do Not Need a Macrodyne Press to Use Macrodyne Cylinders
Macrodyne cylinders are not just for Macrodyne presses.
We support custom cylinder projects for existing equipment, older machinery, legacy systems, and heavy industrial applications where original drawings, replacement parts, or OEM support may no longer be available.
That includes hydraulic presses, but it also includes large industrial equipment used in steel mills, mines, shipyards, hydroelectric facilities, aerospace plants, rail operations, defense production, and other high-force environments.
In many cases, Macrodyne can design a replacement or upgraded cylinder around the existing machine structure, hydraulic system, mounting requirements, stroke, force, operating pressure, and production needs. This is especially valuable when OEM cylinder support is limited or unavailable; the original cylinder is obsolete; the cylinder has been repaired repeatedly; seal failure keeps coming back; rod scoring or chrome damage is recurring, etc.
Industries that Use Large Hydraulic Cylinders
Large hydraulic cylinders are found wherever heavy equipment needs controlled force, motion, lifting, positioning, or forming capability. Macrodyne supports custom cylinder requirements across a wide range of industrial sectors.
Steel Mills and Metal Processing
Steel mills rely on very large hydraulic cylinders for some of the hardest-working equipment in the plant. These cylinders are exposed to heat, scale, heavy loads, high duty cycles, and demanding production environments. Typical applications include:
- Plate mills
- Slab presses
- Forging presses
- Coilers
- Shears
- Furnace doors
- Roll adjustment systems
- Coil and slab handling equipment
- Heavy clamping systems
- Mill-duty positioning systems
Aerospace Industries
Hydraulic cylinders provide immense power, precise control, and a high power-to-weight ratio essential for aerospace operations. Typical applications include:
- Landing Gear
- Flight Control Surfaces
- Braking & Steering
- Thrust Reversers
- Cargo Doors
- Forming systems
- Carbon fiber production equipment
- Aerospace test equipment
- Custom high-force production systems
Automotive Industries
Hydraulic cylinders convert fluid power into high-output linear motion. In the automotive sector, they are vital for several vehicle systems. Typical applications include:
- Power Steering
- Active Suspension
- Convertible Roofs
- Commercial Dumps & Lifts
- Service Lifts & Jacks
- Stamping and trim presses
- Assembly presses
- Prototype and production tooling equipment
Defense and Munitions Manufacturing
Hydraulic cylinders are vital components in the defense industry. They convert fluid power into high-force linear motion to operate heavy combat vehicles, missile systems, naval equipment, and aircraft with extreme reliability under harsh conditions Typical applications include:
- Turret control
- Suspension & tracks
- Ramps & hatches
- Transporter Erector Launchers (TEL)
- Ammunition production and handling
- Stabilization jacks
- Heavy component manufacturing
- Test and validation equipment
- Specialized defense production systems
Shipbuilding and Marine Equipment
Shipbuilding and marine applications often require large hydraulic cylinders for lifting, forming, positioning, opening, closing, and handling heavy structures.
Typical applications include:
- Heavy lifting systems
- Dry dock equipment
- Hatch covers
- Shipyard machinery
- Marine cranes
- Steering systems
- Ramp systems
- Plate forming equipment
- Heavy-duty positioning systems
Mining and Mineral Processing
Mining equipment uses very large hydraulic cylinders in harsh environments where dust, impact, vibration, contamination, and heavy loading are part of daily operation. Typical applications include:
- Roof supports
- Crushers
- Shovels
- Mineral presses
- Rock breakers
- Heavy lifting systems
- Material handling equipment
- Loader and haulage equipment
- Custom replacement cylinders
Oil and Gas
Oil and gas operations use large hydraulic cylinders in drilling, pipe handling, pressure control, and heavy equipment applications. Typical applications include:
- Blowout preventers
- Pipe handling equipment
- Drilling rigs
- Lifting systems
- Clamping systems
- Heavy-duty actuators
- Maintenance equipment
- Custom offshore and onshore machinery
Hydropower and Dam Infrastructure
Hydropower facilities use large hydraulic cylinders to control water flow, gates, turbines, and other critical infrastructure. Typical applications include:
- Dam gates
- Spillway gates
- Intake gates
- Turbine controls
- Lock systems
- Large valve actuation
- Maintenance lifting systems
- Heavy civil infrastructure equipment
Construction and Heavy Equipment
Construction equipment uses large hydraulic cylinders for lifting, pushing, driving, boring, and moving heavy loads. Typical applications include:
- Tunnel boring machines
- Pile driving equipment
- Heavy cranes
- Lifting systems
- Large excavating equipment
- Custom construction machinery
- Forming and positioning equipment
- High-force actuation systems
Nuclear and Power Generation
Nuclear and power generation facilities use large hydraulic cylinders in maintenance, handling, positioning, and specialized equipment. Typical applications include:
- Reactor maintenance equipment
- Fuel handling systems
- Power plant lifting systems
- Turbine maintenance equipment
- Large valve actuation
- Heavy-duty positioning systems
- Custom maintenance equipment
- Specialized industrial machinery
Rail and Transportation
Hydraulic cylinders provide high-force linear movement for heavy lifting, track maintenance, and vehicle recovery in the rail and transportation sectors. Typical applications include:
- Ballast Tampers
- Rail Grinders and Welders
- Rail straightening systems
- Wheelset equipment
- Track Alignment and Spiking
- Heavy component assembly
- Maintenance equipment
- Lifting and positioning systems
When the Cylinder is the Problem
A hydraulic cylinder issue rarely stays politely contained. Leaks, scoring, drift, seal failure, inconsistent movement, or repeated repairs can all point to a deeper problem with the cylinder design, loading conditions, hydraulic system, maintenance history, or operating environment.
Macrodyne can help assess the issue and determine whether the best path is repair, rebuild, replacement, or redesign.
Common Cylinder Issues we Help Address :
- Rod scoring
- Chrome damage
- Seal failure
- Packing failure
- Cylinder drift
- External leakage
- Internal bypassing
- Slow or inconsistent movement
- Off-center loading
- Worn barrels
- Damaged rods
- Worn glands or pistons
- Poor surface finish
- Outdated cylinder design
- Recurring cylinder failure
- Obsolete replacement parts
Large Cylinder Applications we Support
From main press cylinders to custom large-bore replacements, Macrodyne supports hydraulic cylinder applications where force, fit, sealing, and long-term reliability have to work together.
Main Cylinders: Main cylinders provide the primary force in hydraulic presses and other high-force equipment. These cylinders must be designed around tonnage, stroke, speed, pressure, mounting, alignment, and long-term service requirements.
Ejector Cylinders: Ejector cylinders help release, lift, or move parts after forming, pressing, molding, or compaction. In production environments, they play an important role in repeatability, part handling, and cycle efficiency.
Pull-Back Cylinders: Pull-back cylinders support controlled return motion and machine reset functions. In demanding applications, they must perform reliably through repeated production cycles.
Cushion Cylinders: Cushion cylinders help control material flow and forming behaviour in deep draw and complex forming applications.
Large-Bore Replacement Cylinders: Large-bore replacement cylinders are often needed when original cylinders are worn, damaged, obsolete, or no longer suitable for the demands of the equipment.
Why Manufacturers Work with Macrodyne
Macrodyne is not just a hydraulic cylinder supplier. We understand the equipment around the cylinder.
That matters because large cylinders do not operate in isolation. They are tied to machine structure, hydraulic pressure, stroke, speed, controls, alignment, loading conditions, safety requirements, maintenance access, and production demands.
A cylinder can look right on paper and still create problems if it does not match the real operating conditions of the machine. Macrodyne brings experience designing and building some of the world’s largest hydraulic press cylinders, custom cylinder design and manufacturing capability and support for all press makes and models.
Need Support with a Large Hydraulic Cylinder?
Send us your cylinder details, equipment information, photos, drawings, or issue description.
Macrodyne can help determine whether repair, replacement, modernization, or redesign makes the most sense.
